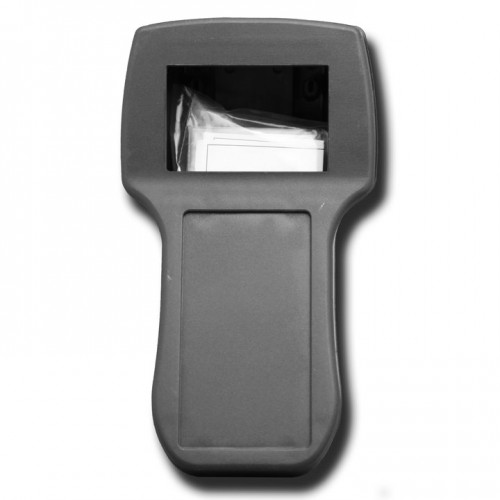

Overview of the Handheld Project Enclosure

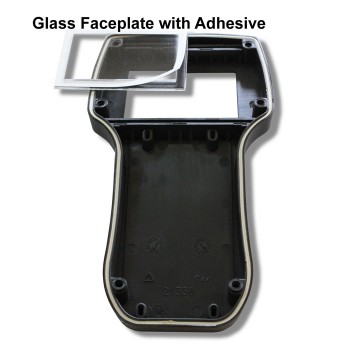

The handheld project enclosure comes complete with fastening hardware and glass faceplate. The glass faceplate has an adhesive rim to affix to the case. This professional grade console style enclosure provides great flexibility and an impressive look for your small electronics project.
Very durable construction, tight seal and plenty of room for your project. This project box is manufactured by Rose Enclosures this is the Beluga 180-O model.

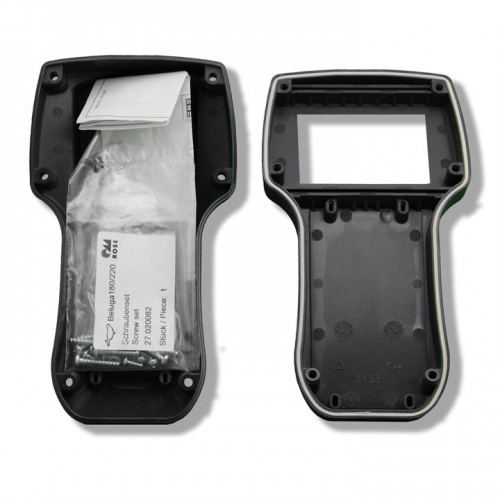

The project case is new and comes shrink wrapped with fastening hardware and assembly information. Includes case, screws, and faceplate. Does not include any buttons, sensors or contact strips.

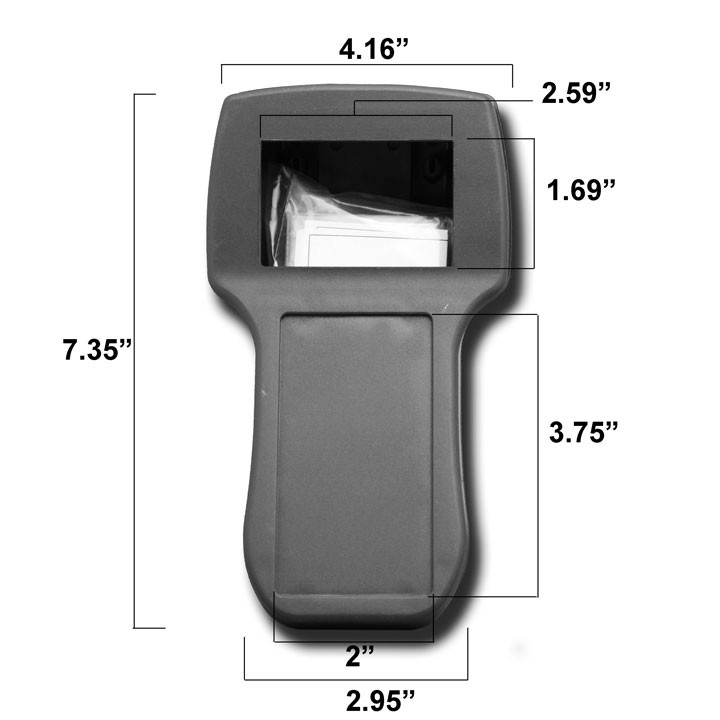

Outer dimensions of the handheld Project Enclosure
The top of the case is 4.16 inches wide and has an overall height of 7.35 inches. The width for the handheld portion of the case is 2.95″ inches. The window cutout (for the glass) is 2.59 inches x 1.69 inches. The measurements in inches are approximate please see diagrams below for precise measurements in mm.
Model: Rose Beluga 180 O
Data Sheet: Datasheet Beluga180_220_GB
Ingress protection: IP 65 to EN 60529
Surface resistance: 1012 Ohm, IEC 60093
Flammility: UL 94 V-2
Colour: RAL 7021, black grey
Temperature range: -40°C to +60°C

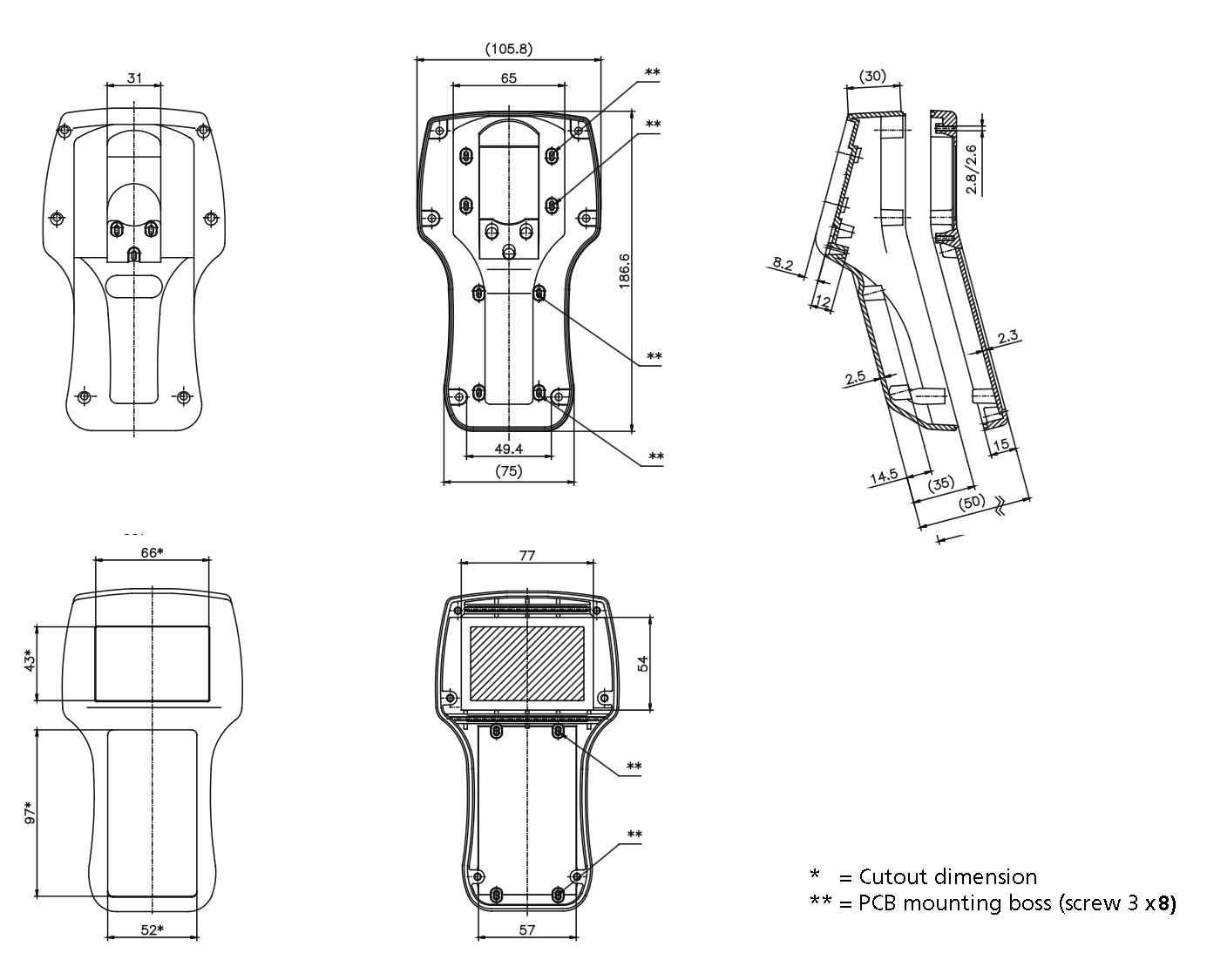

Diagram and Dimensions of the Project Case
